Swivels are essential for the safe and efficient installations of cables, both over and underground.
Swivels

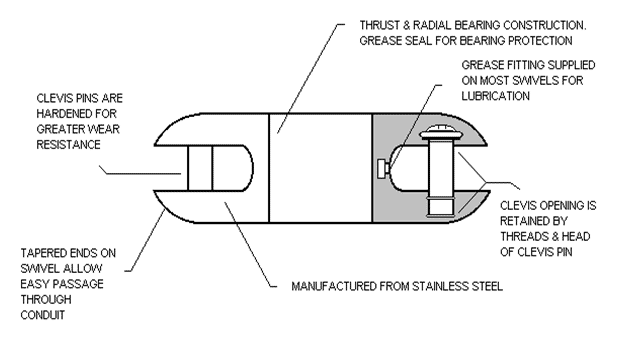

Swivels are essential for the safe and efficient installations of cables, both over and underground. Ball bearing swivels stop torque gradually building by both the pulling equipment and the lay of the cables themselves. CGM swivels are contoured to allow ease of passage through pulley sheaves.
Swivels are an indispensable aid for safe and easy cable laying. CGM swivels are made from the finest Stainless Steel, and guarantee a long working life.
The use of double axial bearings makes it possible to neutralise the torsion as required, even under maximum tension.
Note: Line swivels are not designed to run around bull wheels and severe damage or injury may be incurred if this is done.
| Max.Tension (Kg) * | Diameter (mm) | Clevis Gap (mm) | Length (mm) | Weight (kg) | CGM Ref. No. |
|---|---|---|---|---|---|
| 340 | 15.9 | 7.1 | 64.0 | 0.06 | 107183 |
| 500 | 20.0 | 7.0 | 78.4 | 0.14 | 107173 |
| 1021 | 22.2 | 9.5 | 85.8 | 0.16 | 107174 |
| 1587 | 25.4 | 10.3 | 95.3 | 0.23 | 107175 |
| 2268 | 31.8 | 13.5 | 120.7 | 0.45 | 107176 |
| 3175 | 34.9 | 14.3 | 130.2 | 0.64 | 107177 |
| 4536 | 41.3 | 17.5 | 152.4 | 0.96 | 107181 |
| 6804 | 50.8 | 19.8 | 177.8 | 1.73 | 107178 |
| 13608 | 60.3 | 26.2 | 254.0 | 3.45 | 107182 |
| 22680 | 76.2 | 30.2 | 330.2 | 7.72 | 107179 |
* Safety Factor 3:1 Applied
